Features:
*With one side visual communication, another black side provides sun-shade and
enhances privacy and security
* Excellent printability, conversion and application characteristics
* Good dimensional stability during use
* Easy application to glass substrates

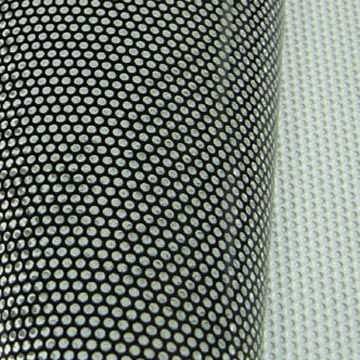

* 1.60mm hole size for superior one way vision, 40% light transmittance
*Compatible with solvent,eco-solvent,UV,screen printing
*Printable with LATEX, VUTEK, SCITEX, NUR, DGI, MIMAKI, ROLAND, MUTOH, SEIKO, JET-I and etc
The popular Economical specifications:
Item No.
|
Hole size
|
Film Thickness
|
Liner
|
Regular Width
|
(mm)
|
(micron)
|
(g/sqm)
|
(meters)
|
TX8003D
|
1.60
|
140
|
140
|
0.98/1.06/1.27/1.37/1.52
|
TX8003
|
1.60
|
140
|
160
|
0.98/1.27/1.37/1.52
|
TX8803
|
1.60
|
160
|
160
|
0.98/1.27/1.37/1.52
|
TX8003D Technical Data:
Properties
|
units
|
Test method
|
Average value
|
Thickness - film
|
μm
|
GB/T6672-2001
|
140±10
|
Weight - finished product
|
g/m²
|
GB4669-1995
|
270±20
|
Initial Adhesion
|
N/25mm
|
FINAT9
|
5min
|
Dimensional stability MD
|
%
|
FINAT14
|
0.6max
|
Dimensional stability CD
|
%
|
FINAT14
|
0.4max
|
Elongation at break MD
|
%
|
GB/T1040.1-2006
|
40min
|
Elongation at break CD
|
%
|
GB/T1040.1-2006
|
30min
|
Tensile Strength at break MD
|
N/25 mm
|
GB/T1040.1-2006
|
20min
|
Tensile Strength at Break CD
|
N/25 mm
|
GB/T1040.1-2006
|
15min
|
Minimum application temperature
|
°C
|
/
|
+ 10
|
Temperature range
|
°C
|
/
|
-20 ~ +70
|
